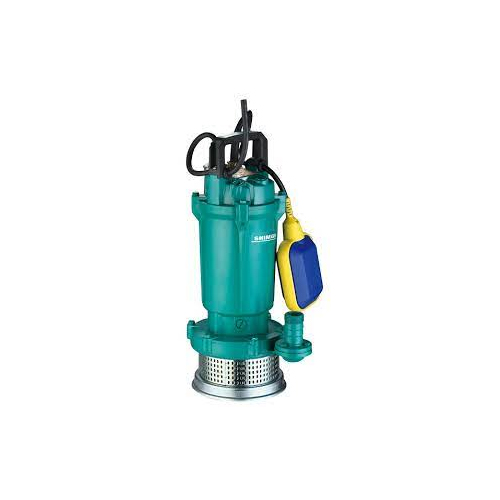

SHIMGE QDX type small Submersible Pump is composed of three parts: water pump, seal and motor. The motor is located on the upper part of the electric pump. It is single-phase or three-phase asynchronous motor. The water pump is located at the lower part of the electric pump, which is of centrifugal impeller and volute structure. Double end face mechanical seal is adopted between the pump and the motor, and "O" oil-resistant rubber seal ring is used for static seal at each fixing stop.·

The rotary shaft of the electric pump is treated with hard chromium platin g, which effectively improves the abrasion and corrosion resistance of the shaft and facilitates the maintenance and removal of the impeller. The motor is equipped with a thermal protector, which can automatically turn off the power to protect the motor when the electric pump is out of phase, overloaded or the motor is overheated.

Application Limits

• Maximum liquid temperature +40℃
• pH level from 6.5 - 8.5
• Maximum sand content is 0.1%
• Passage of suspended solids up to 0.2mm
• Power frequency is 50Hz. Nominal voltage is 220VAC for single phase and 380VAC for three phase with the range from -10% to 10%.
• Immersion depth from 0.5m-5m

Applications Fields

• Suitable for transferring water without abrasive particles
• Suitable for well water lifting, farm irrigation, garden irrigation and living water supply
• Suitable for industrial water eliminating, construction water supply and drainage, breeding industry water supply and drainage, etc.

Features

• New industrial design, lower motor temperature rise.
• Optimized motor design, improved efficiency.
• Alloy impeller of high performance engineering plastics or aluminum.
