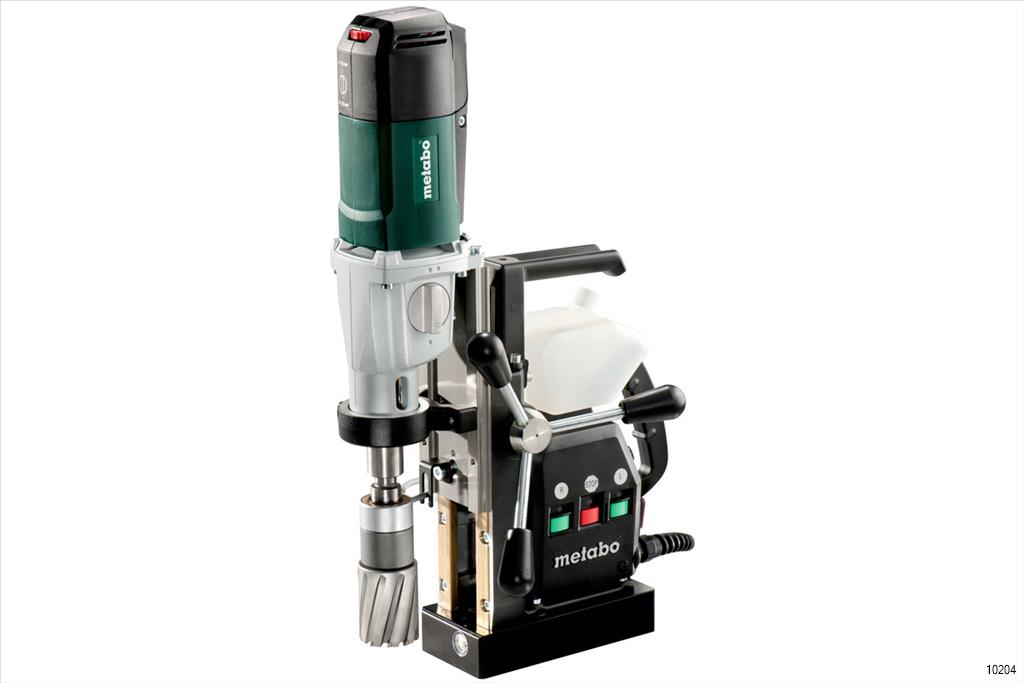

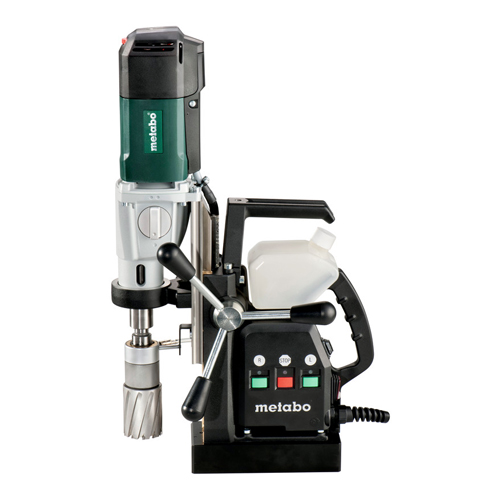

METABO MAGNETIC CORE DRILL MAG 50

METABO MAGNETIC CORE DRILL MAG 50 (600636500)

Drill with a tough gear box and a powerful 1.2Kw Marathon motor is able to cut up to an impressive Ø 50mm using HSS or TC core cutters and 20mm with a spiral drill. Thanks to the oil filled two speed gear box large diameter cores can be drilled and with the unique Metabo VTC electronics constant speed is maintained under load. The Mag 50 has both clockwise and anti-clockwise rotation making it ideal for thread tapping.

  • Rated input power 1200 W
  • Output power 620 W
  • Max. drill-Ø with core drill 50 mm / 2 "
  • Max. drill-Ø with spiral drill 20 mm / 3/4 "
  • Maximum drilling depth 50 mm / 2 "
  • Thread cutting M 16
  • No-load speed 100 - 250 / 200 - 450 rpm
  • Revolutions at rated load 250 / 450 rpm
  • Bit retainer Morse taper MK 2 / Weldon shaft 19 mm (3/4")
  • Weight 12.7 kg / 28 lbs
  • Cable length 5 m / 16 ft
  • Torque 90 / 50 Nm // 797 / 443 in-lbs
  • Max. depth of feed 160 mm / 6 5/16 "
  • Max. magnetic holding force 12250 N
  • Dimensions of the magnet base 90 x 190 mm // 3 9/16 x 7 1/2 "
  • Height carriage lowest position 457 mm / 18 "
  • Height carriage topmost position 610 mm / 24 "
  • 1 Year Limited Warranty*

*terms & conditions apply
