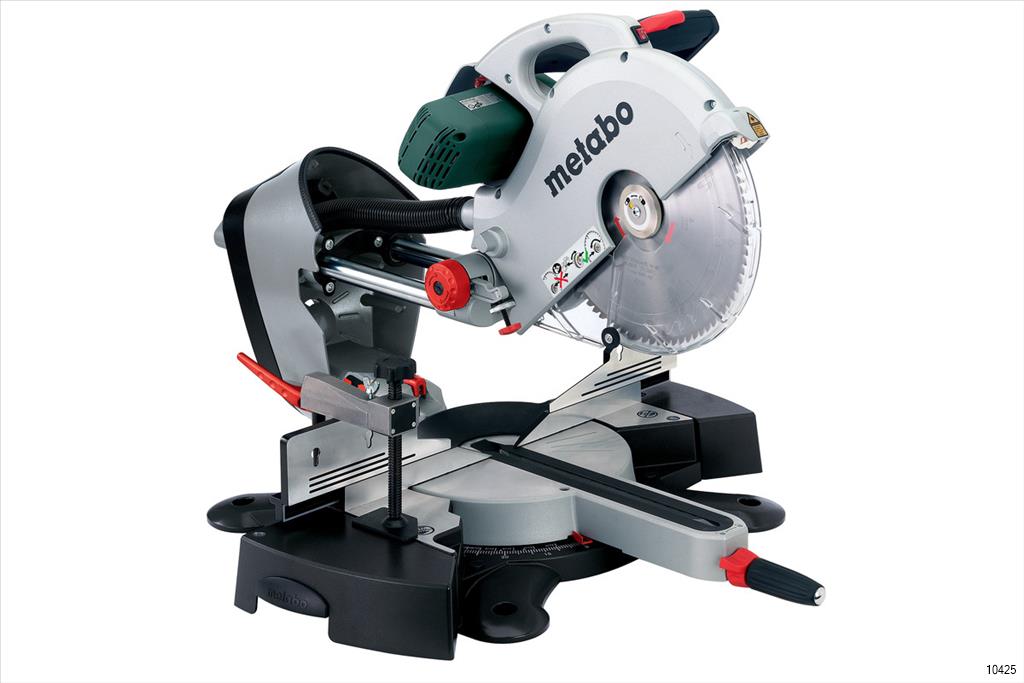

Maximum flexibility when sawing thanks to rotating table and inclinable saw head on both sides Its enormous cutting performance due to extremely powerful universal motor and large saw blade, Vario-Constamatic (VC)-Full wave electronics for working at customized speeds to suit the application materials, and speeds that remain almost constant even under load.

• Dimensions 950 x 765 x 660 mm // 3.2 x 2.5 x 2.2 ft

• Support surface 1070 x 505 x 365 mm
• Maximum cutting width 90°/45° 320 / 223 mm // 12 9/16 / 8 3/4 "
• Maximum cutting depth at 90°/45° 120 / 76 mm // 4 11/16 / 3 "
• Cutting capacity 90°/90° 320 x 120 mm // 12 9/16 x 4 11/16 "
• Cutting capacity 45°/45° 223 x 76 mm // 8 25/32 x 3 "
• Turntable setting left/right 47 / 60 °
• Saw blade tilt left/right 46 / 46 °
• Saw blade 315 x 30 mm // 12 3/8 x 1.181 "
• Rated input power 1600 W
• Rated input power S1 100% 1600 W
• Rated input power S6 20% 2200 W
• No-load speed 3100 - 4100 rpm
• Revolutions at rated load 4100 rpm
• Cutting speed 51 - 68 m/s // 167 - 223 ft/s
• Weight 27.2 kg / 60 lbs
• Cable length 2.1 m / 7 ft
• 1 Year Limited Warranty*

*terms & conditions apply
