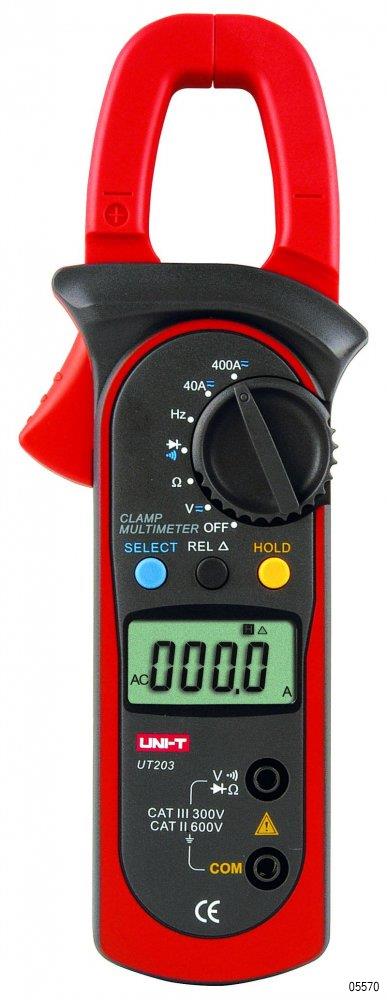

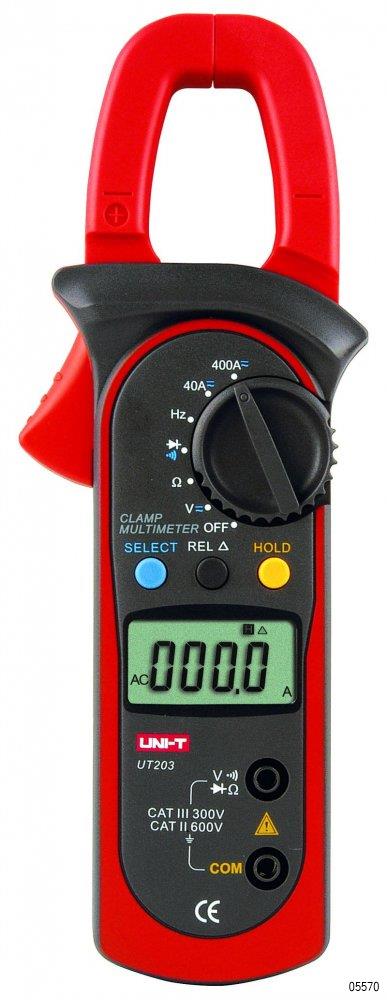

A multifunctional AC and DC clamp meter, the UT203 performs accurate testing of current and other associated electrical parameters.
- Auto ranging
- Diode
- Continuity buzzer
- Relative mode
- Data hold
- Full icon display
- Sleep mode
- Low battery display
- Input impedance for DC Voltage: 10 MOhm
- Max. display 3999 (35.6 x 18mm)
Technical data:
- DC Voltage: 400mV / 4V / 40V / 400V / 600V - best accuracy: +/- (0.8%+1)
- AC Voltage: 4V / 40V / 400V / 600V - best accuracy: +/- (1%+5)
- DC Current: 40A / 400A - best accuracy: +/- (2%+3)
- AC Current: 40A / 400A - best accuracy: +/- (2.5%+5)
- Resistance: 400 Ohm / 4 kOhm / 40 kOhm / 400 kOhm / 4 MOhm / 40 MOhm -best accuracy: +/- (1%+2)
- Frequency: 10Hz - 1MHz - best accuracy: +/- (0.1%+3)
- Duty cycle: 0.1% ~ 99.9%
