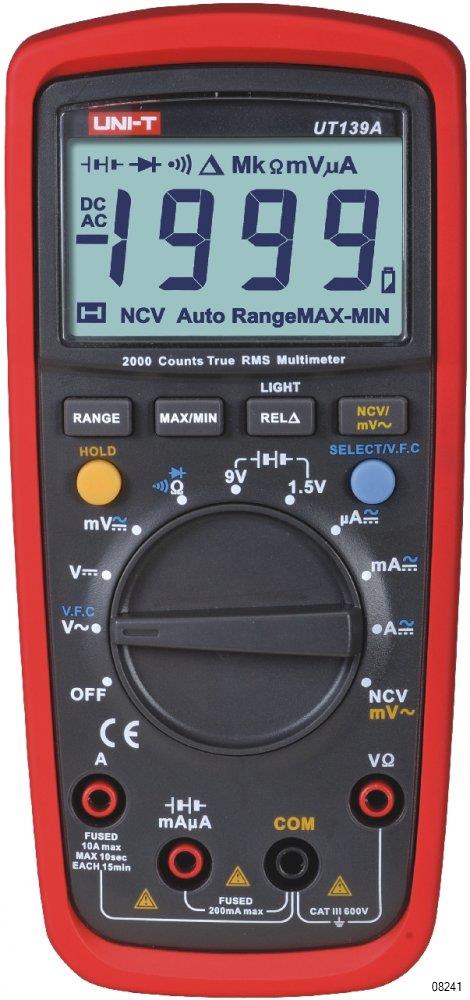

UT139 series are CAT III 600V digital multimeters designed for electricians. Its NCV feature can effectively check electrical status through measuring EM field intensity. The new UT139E/S models include special features such as LoZ (ACV) for measuring‘ghost’ voltage. Its built-in 31-segment analog bar also gives electricians a better visual representation of measurement results. UT139S is built with black EBTN display and it is a perfect meter for working in dark environments.

• MAX/MIN/REL modes
• Data hold, LED backlight, auto power off
• Full range protection (600V)
• True RMS
• NCV
• Auto/manual ranges selectable

Technical data:

• DC voltage (V) 600V ±(0.5%+2)
• AC voltage (V) 600V ±(0.8%+3)
• DC current (A) 10A ±(0.7%+2)
• AC current (A) 10A ±(1%+3)
• Resistance (Ω) 60MΩ ±(0.8%+2)
• Capacitance (F) 99.99mF ±(4%+5)
• Frequency (Hz) 10Hz~10MHz ±(0.1%+4)
• Temperature (°C) -40°C~1000°C ±(1%+3)
• Temperature (°F) -40°F~1832°F ±(1.5%+5)
• Display count 　 6000
• Auto range/Manual range
• /True RMS 　 √
• Bandwidth (Hz) 　 45Hz~1kHz
• NCV/Continuity buzzer 　 √
• Duty cycle 0.1%~99.9% √
• Diode 　Around 3V
