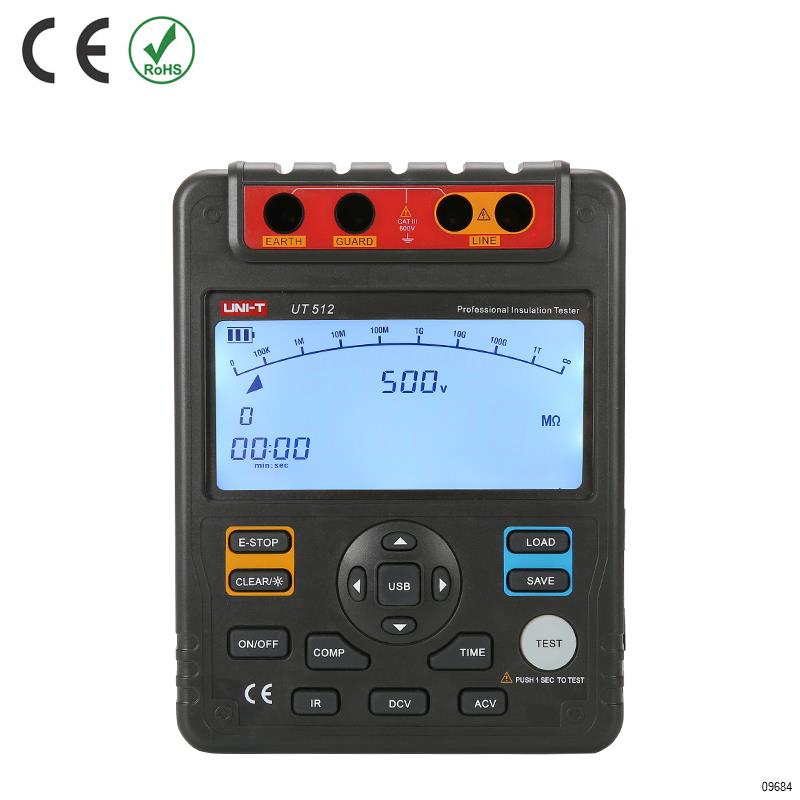

UT510 series testers can measure insulation resistance of large transformers, generators, high-voltage motors and more. UT510 series can also measure PI, DAR and other important specifications. Measured data can then be analyzed through PC software. UT513A can produce test voltage up to 5kV.

• Large 9999 display with 30-segment analog bar graph
• PI/DAR measurements
• Comparison, upper and lower limit functions
• Continuous measurement mode
• Auto power off
• 18-group data storage
• Backlight
• Auto current discharge and high-voltage output alarm
• Power adapter
• Time measurement mode, auto measure within 15 minutes
• USB interface and PC software
• Low battery and over range indications

Technical data:

• Insulation Resistance: 0.5MOhm ~100GOhm - best accuracy: +/- (3%+5)

• Testing Voltage: 500V / 1000V / 1500V / 2500V - best accuracy: 0 ~ 20%
• DC Voltage: 600V - best accuracy: +/- (2%+5)
• AC Voltage: 600V - best accuracy: +/- (2%+5)
