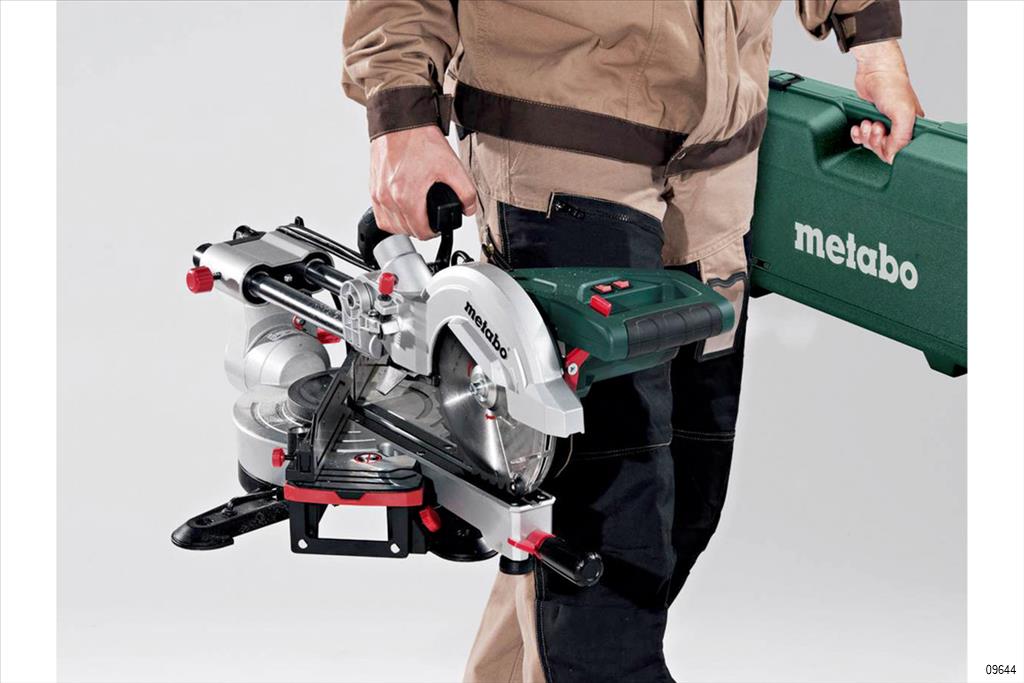

The mitre saw scales and operating elements are visible from the working position and can be operated intuitively. Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required. Compact light weight, suitable also for one-handed transport & laser for exact display of the cutting line (mains powered, no batteries required). Adjustable and extendable table width extensions, removable to put long panels, slabs.

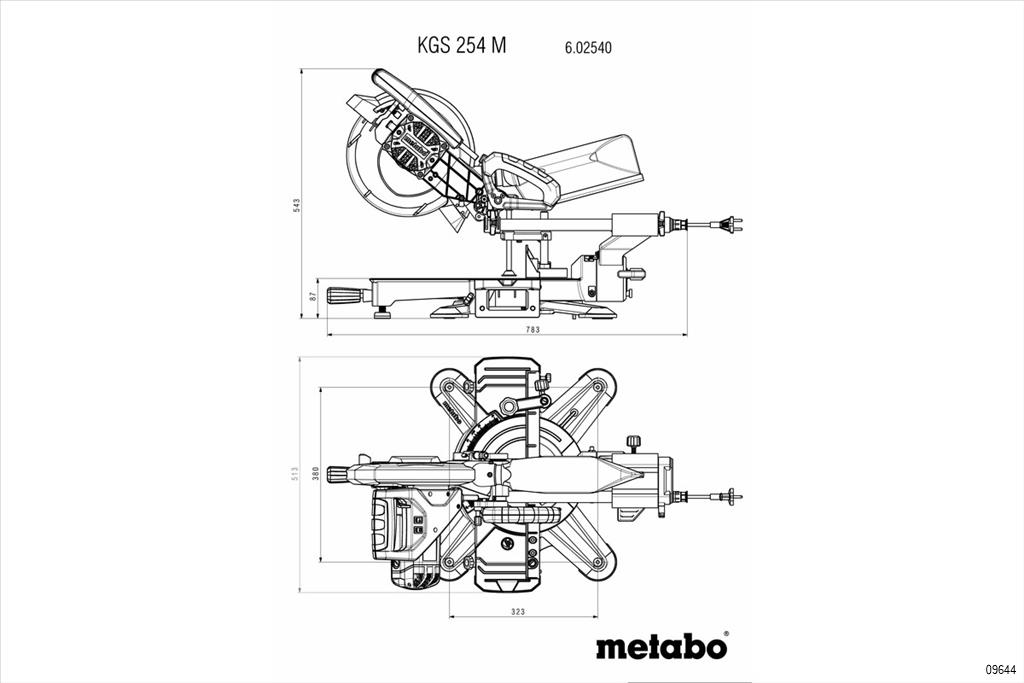

• Dimensions 790 x 515 x 515 mm // 2.6 x 1.7 x 1.7 ft

• Support surface 340 x 775 mm
• Maximum cutting width 90°/45° 305 / 205 mm // 12 / 8 1/16 "
• Maximum cutting depth at 90°/45° 92 / 47 mm // 3 5/8 / 1 13/16 "
• Cutting capacity 90°/90° 305 x 92 mm // 12 x 3 5/8 "
• Cutting capacity 45°/45° 205 x 47 mm // 8 1/16 x 1 27/32 "
• Turntable setting left/right 47 / 47 °
• Saw blade tilt left/right 47 / 2 °
• Saw blade 254 x 30 mm // 10 x 1.181 "
• Rated input power S1 100% 1450 W
• Rated input power S6 20% 1800 W
• No-load speed 4500 rpm
• Revolutions at rated load 3150 rpm
• Cutting speed 60 m/s // 197 ft/s
• Weight 16.3 kg / 36 lbs
• Cable length 2 m / 7 ft
• 1 Year Limited Warranty*
