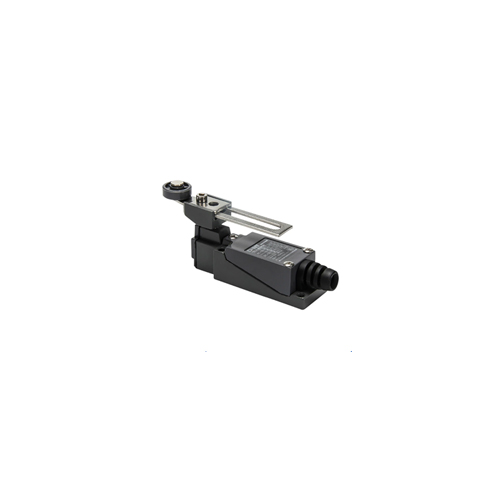

LIMIT SWITCH WATERPROOF YBLX-ME/8108 CHNT

YBLX-ME series of travel switch is applicable to electric circuit with voltage not more than AC-15 380V,50Hz/ 60Hz or DC-13 Ue 220V and current not more than AC-15 Ie 0.8A or DC-13 Ie 0.16A. Travel control, direction of motion or speed change of movement mechanism, automatic control of machine tool, limit action & travel or procedure control of movement mechanism.

  • Operation: adjustable roller rotating arm
  • Electric life: 250,000 times
  • Mechanical life: 400,000 times
  • Rated voltage: AC380V/DC220V
  • Rated current: ac0.8a/dc0.16a
  • Ambient temperature: -5℃~+40℃
  • Operating frequency: mechanical: 120 times/min, electrical: 30 times/min
  • Contact resistance: 15 m or less Ω (initial value)
