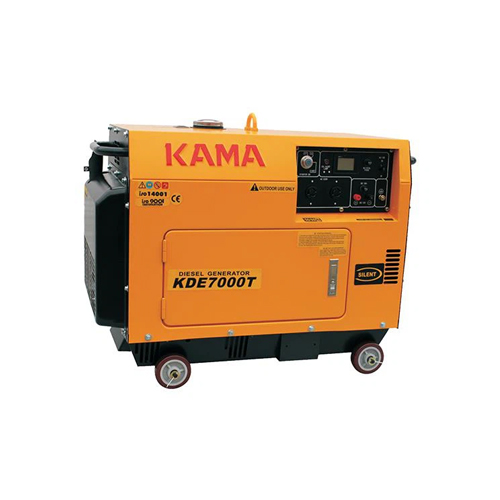

KAMA GENERATOR 5.5KVA DIESEL SILENT KDE7000T THREE PHASE

• MODEL KDE7000T
• Rated frequency(Hz) 50  60
• Rated output power(kw) 5 5.5
• Max output power(kw) 5.5  6
• Rated voltage(V) 230  230/115
• Rated current(A) 20  22.6
• Rated rotation speed(rpm) 3000  3600
• Phase number Single phase
• Power factor COS(Φ) 1.0
• Insulation class F
• Number of poles 2
• Exciting Mode Automatic regulator(with AVR)
• Panel Form Normal Panel
• Output voltage(V) 230
• Output form 230V socket x2
• DC output DC12V8.3A binding post
• Size(mm) 910*530*740
• Net weight(kg) 165
• Gross weight(kg) 180
• Noise level(dba/7m) 74
• Structural form Silent type
• Engine model KM186FAE
• Engine type Single cylinder，4-stroke，direct injection
• Number of cylinders-bore*stroke[mm] 1-86*72
• Displacement[ml] 418
• Rated output power[Kw/rpm] 5.9/3000
• Compression ratio 19:1
• Engine speed 3000
• ignition system Compression-ignition
• Type of cooling Air-cooled
• Lubrication system Compression-spray
• Start-up mode Electric  start
• Fuel 0#(summer)-10#(winter)-35#(frost)diesel oil
• Lube Brand SAE10W30(above CD grade)
• Lubrication oil volume[L] 1.65
• Starting motor capacity[V-KW] 12V  0.8KW
• Fly-wheel generator capacity 100W
• Battery capacity[V-Ah] 12V  36Ah
• Specific fuel consumption[g/kw.h] 280
• Fuel capacity[L] 15
• Continuous operation hours 12
