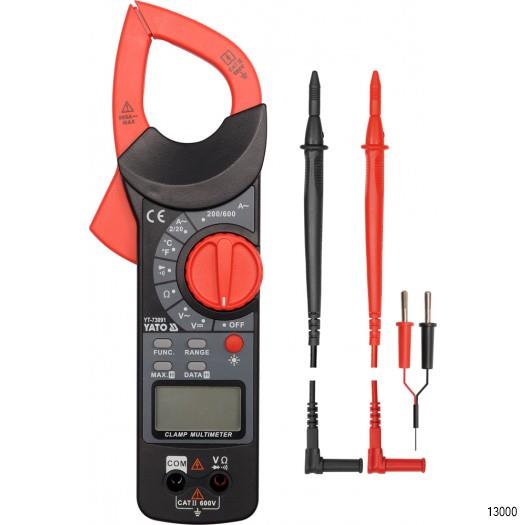

The universal clamp meter YT-73091 with an automatic range for most indications allows you to perform basic electrical measurements. The meter is equipped with measuring clamps which allow for measuring the intensity of alternating current in a single conductor with the induction method. The measurement takes place without the need to disconnect the circuit or disconnect it from the power source, and allows you to measure a much higher current than conventional electric meters.

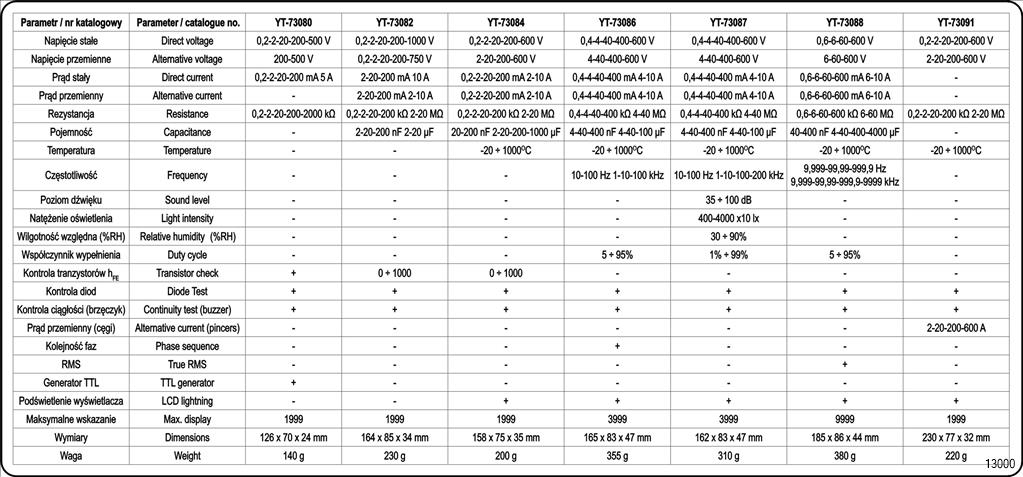

Technical data
| Symbol | YT-73091 |
|---|
| EAN | 5906083730917 |
| Brand | Yato |
| Weight (kg) | 0.5750 |
| Master Carton MC | 20 |
| Pal | 480 |
| Automatic range | So |
| Sampling frequency | 3 times per second |
| Measurement of alternating voltage | 0-600V ±1,2% |
| DC voltage measurement | 0-600V ±1,0% |
| Resistance measurement | 0-20 MΩ ±3% |
| Temperature measurement | -20 do 1000°C |
| Alternating current | 0-600A ±3% |
| Continuity test | built-in buzzer |
