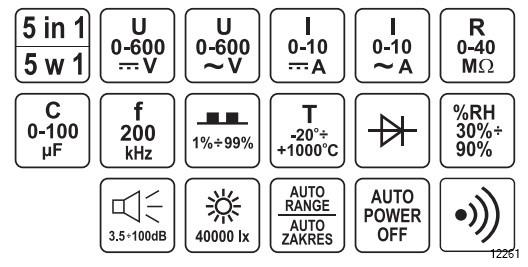

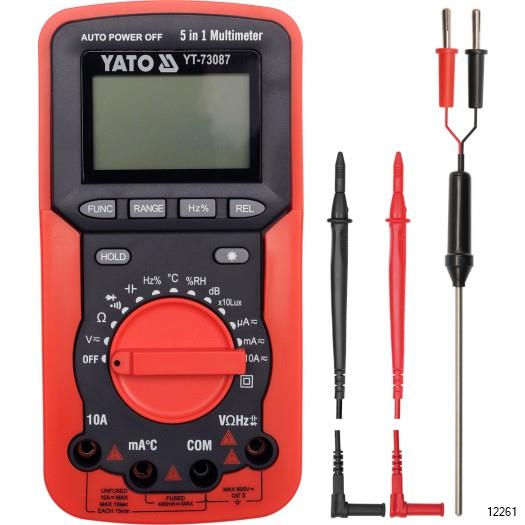

YATO Digital 5 in 1 Multimeter allows you to measure DC and AC voltage and current. In addition, the universal electric meter YT-73087 allows you to measure resistance, capacitance of capacitors, current frequency, and duty cycle, and also allows you to check the diode. Moreover, the universal meter YT-73087 can measure relative humidity (from 30 to 90%), sound level (from 35dB to 100dB) and illuminance (from 4000 to 40,000 Lux).
In addition, the YT-73087 digital meter allows you to measure the temperature, which is especially useful when detecting faulty components in electrical installations (increased resistance of e.g. a damaged cable causes the component to heat up).
All functions of the YT-73087 multimeter allow to assess the quality of work of electrical devices to a much greater extent than traditional electrical meters. We can examine the amount of light generated by the bulb, the efficiency of the sound system. We can also check if the conditions are suitable for the operation of electrical devices (humidity and temperature).
The automatic range significantly reduces the measuring time. When measuring values ​​that have not been estimated previously, in a traditional universal electric meter, take measurements sequentially from the largest range up to the range that gives the most accurate result - otherwise, you risk damaging the multimeter. However, in the case of the YT-73087 multimeter, it is enough to take one measurement, the meter will automatically find the optimal range. The range can also be selected manually with the "range" button.
An additional function of the meter is the "REL" button which enables the relative value measurement. The function is available for each position of the selector (except for frequency measurements, duty cycle and conductivity or diode tests).
The buzzer is useful when inspecting electrical installations - it allows us to easily verify the continuity of the circuit. Automatic multimeter shutdown feature saves battery life. YT-73087, like other YATO multimeters in our offer, is equipped with the so-called holster - a rubber casing that protects the meter against mechanical damage.
The backlit screen of the meter enables operation in low light conditions.
Technical data
| Symbol | YT-73087 |
|---|
| EAN | 5906083730870 |
| Brand | Yato |
| Weight (kg) | 0.7710 |
| Master Carton MC | 24 |
| Pal | 240 |
| Automatic range | Yes |
| Sampling frequency | 2-3 times per second |
| Frequency measurement | 0-200kHz ±1,0% |
| Noise measurement | 35-100dB ±0,1dB |
| Measurement of alternating voltage | 0-300V 0 1.0% |
| DC voltage measurement | 0-300V ± 0.8% |
| Capacitance measurement | 0-100µF ±4,0% |
| Resistance measurement | 0-40MΩ ± 1.0% |
| Temperature measurement | -20 do 1000°C ±1,5% |
| Measurement of the fill factor | 1-99% ±2% |
| Alternating current | 0-10A ±2,0% |
| Constant current | 0-10A ±1,8% |
| Continuity test | built-in buzzer |
| Diode test | 1mA, 1,5V
|
