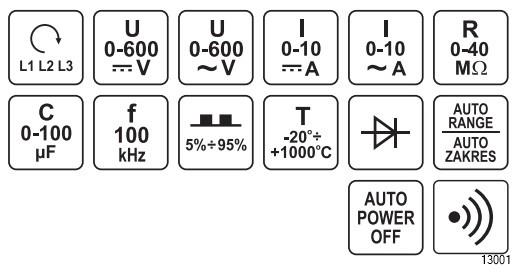

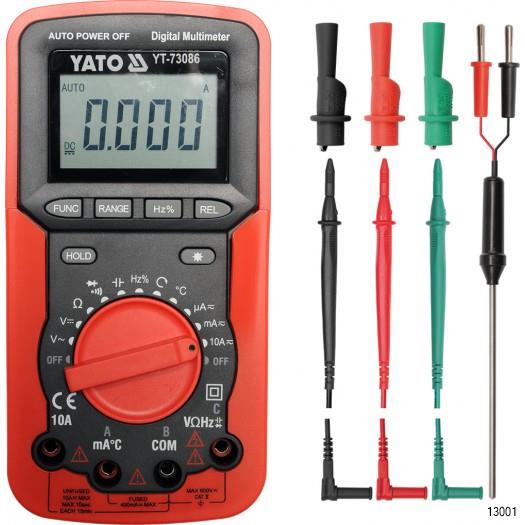

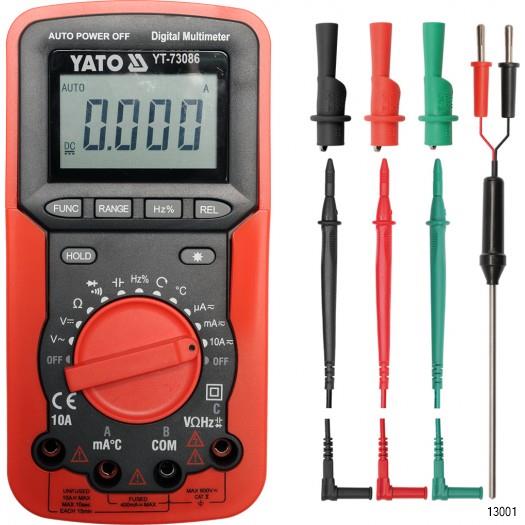

YATO Digital Multimeter can measure AC or DC voltage, AC or DC current, as well as resistance, capacitance, current frequency, check the diodes, measure the temperature and measure the duty cycle. In addition, this multimeter enables phase detection.
The automatic range significantly reduces the measuring time. When measuring values ​​that have not been estimated previously, in a traditional universal electric meter, take measurements sequentially from the largest range up to the range that gives the most accurate result - otherwise, you risk damaging the multimeter. However, in the case of the YT-73086 multimeter, it is enough to take one measurement, the meter will automatically find the optimal range.
In addition, this digital meter allows you to measure the temperature, which is particularly useful when detecting faulty components in electrical installations (increased resistance of e.g. a damaged cable causes the component to heat up).
The backlit screen of the meter enables operation in low light conditions.
Technical data
| Symbol | YT-73086 |
|---|
| EAN | 5906083730863 |
| Brand | Yato |
| Weight (kg) | 0.8130 |
| Master Carton MC | 24 |
| Pal | 240 |
| Automatic range | Yes |
| Sampling frequency | 2-3 times per second |
| Frequency measurement | 0-100kHz ±1,0% |
| Measurement of alternating voltage | 0-600V ±1,2% |
| DC voltage measurement | 0-600V ±1,0% |
| Capacitance measurement | 0-100µF ±8% |
| Resistance measurement | 0-40 MΩ ±2,0% |
| Temperature measurement | -20 do 1000°C ±1,8% |
| Measurement of the fill factor | 5-95% ±2% |
| Alternating current | 0-10A ±3,0% |
| Constant current | 0-10A ±2,0% |
| Continuity test | built-in buzzer |
| Diode test | 1mA, 1,5V
|
