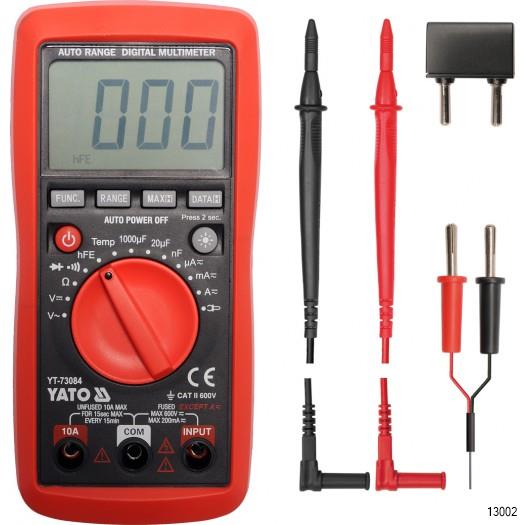

YATO Digital Multimeter can measure AC or DC voltage, AC or DC current, as well as resistance, capacitance of capacitors, check diodes and measure the temperature. The universal meter YT-73084 has an automatic range, which facilitates and accelerates the measurements. In addition, it allows you to measure high currents using additional measuring clamps.
The automatic range significantly reduces the measuring time. When measuring values ​​that have not been estimated previously, in a traditional universal electric meter, take measurements sequentially from the largest range up to the range that gives the most accurate result - otherwise, you risk damaging the multimeter. However, in the case of the YT-73084 multimeter, it is enough to take one measurement, the meter will automatically find the optimal range.
In addition, the YT-73084 digital meter allows you to measure temperature, which is particularly useful when detecting faulty components in electrical installations (increased resistance of e.g. a damaged cable causes the component to heat up).
The backlit screen of the meter enables operation in low light conditions.
The housing of the YT-73084 multimeter is rubberized, which protects the meter against damage. In addition, a stand is integrated in the housing, making it easy to read the measurement hands-free.

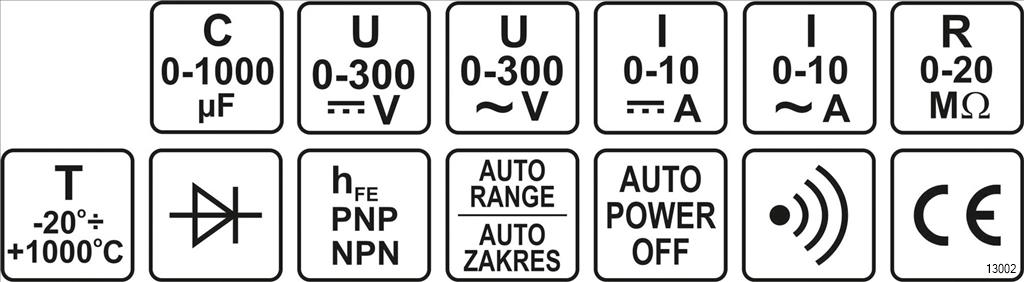

Technical data
| Symbol | YT-73084 |
|---|
| EAN | 5906083730849 |
| Brand | Yato |
| Weight (kg) | 0.4090 |
| Master Carton MC | 44 |
| Pal | 704 |
| Automatic range | Yes |
| Sampling frequency | 2-3 times per second |
| Measurement of hFe of the transistor | + |
| Measurement of alternating voltage | 0-300V ± 1.2% |
| DC voltage measurement | 0-300V ± 1% |
| Capacitance measurement | 0-1000µF ±8% |
| Resistance measurement | 0-20MΩ ±1,5% |
| Temperature measurement | -20 do 1000°C |
| Alternating current | 0-10A ±3% |
| Constant current | 0-10A ±2% |
| Continuity test | built-in buzzer |
| Diode test | 1mA, 1,5V
|
